SmartLine CombiSet Downdraft Extractor CSDA 7001 FL
SmartLine element as downdraft extractor for extraction or recirculation operation
- Intuitive and quick selection via number sequences – Smart Select
- Elegant design – for flush or raised installation
- Seamlessly integrates with any SmartLine element
- Efficient filtration – 10-layer stainless-steel grease filter
- Energy-efficient and quiet – powerful ECO motor
$ 2,999.00
In stock
Description
11402260
- Intuitive and quick selection via number sequences – Smart Select
- Elegant design – for flush or raised installation
- Seamlessly integrates with any SmartLine element
- Efficient filtration – 10-layer stainless-steel grease filter
- Energy-efficient and quiet – powerful ECO motor
Benefits
Exclusive to Miele
SmartSelect
Easy to use thanks to SmartSelect
Quick and intuitive: Power levels and times can be selected separately for each cooking zone.
Exclusive to Miele
SmartSelect
Easy to use thanks to SmartSelect
This feature allows you to select power levels and cooking times quickly and intuitively. Each cooking zone has a numerical display with yellow backlighting. This makes the display easy to read from all directions. Timer durations can be set even more conveniently with separately controllable minute minder, automatic switch-off and a 3-digit indicator.
FlameGuard
Greater safety when combined with gas

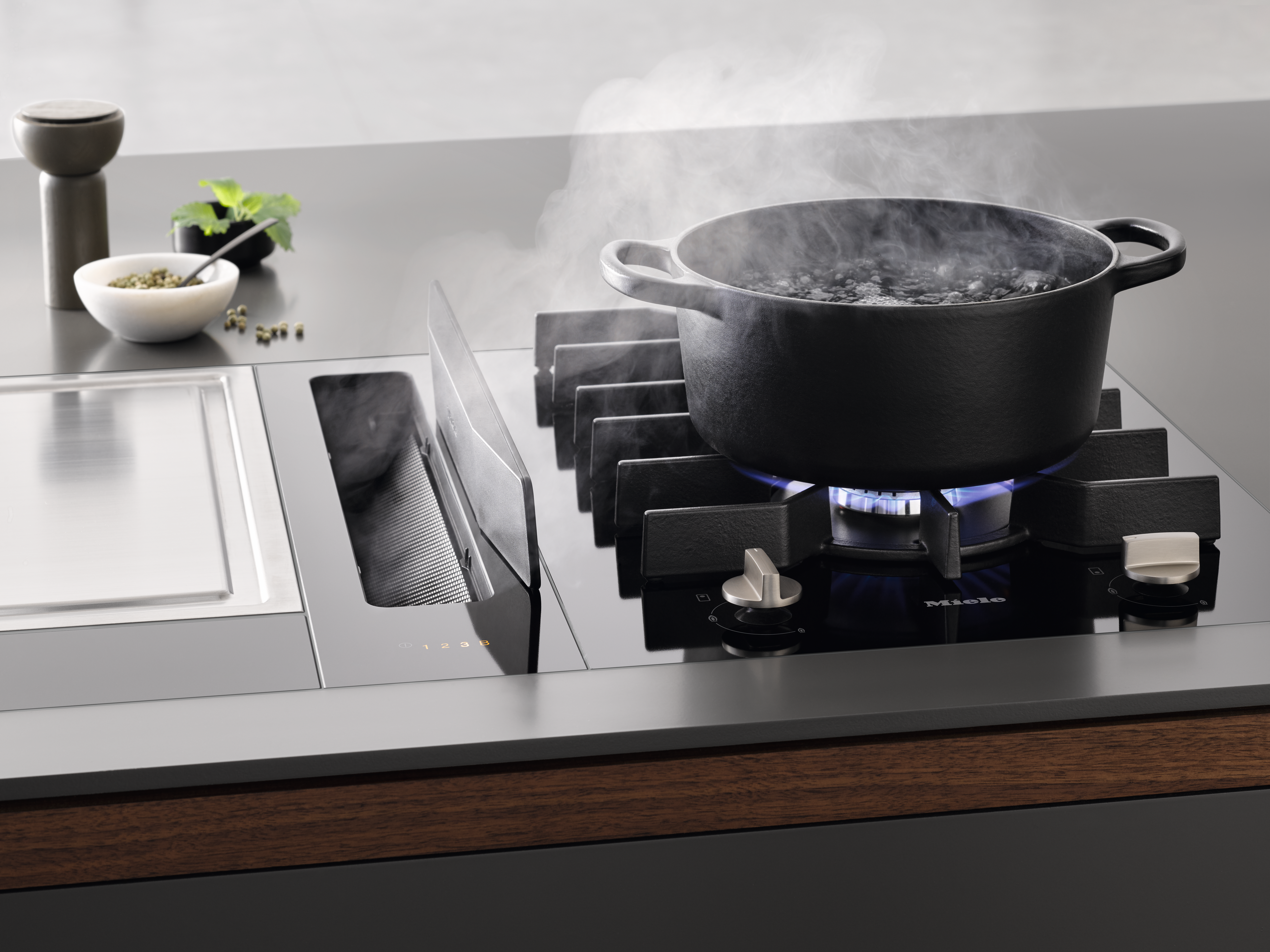

Completely safe: Thanks to the FlameGuard, the gas flame cannot be drawn into the countertop extractor.
FlameGuard
Greater safety when combined with gas
The new countertop extractor can be installed next to all SmartLine elements. When installing it next to a gas element, it is essential to use the flexible FlameGuard. It consists of the countertop extractor lid and adjusts automatically when in use, stays in place with a magnet and can be placed on either side of the extractor. This prevents flames from being drawn into the extractor.
Exclusive to Miele
SmartSelect
Easy to use thanks to SmartSelect
Quick and intuitive: Power levels and times can be selected separately for each cooking zone.
Exclusive to Miele
SmartSelect
Easy to use thanks to SmartSelect
This feature allows you to select power levels and cooking times quickly and intuitively. Each cooking zone has a numerical display with yellow backlighting. This makes the display easy to read from all directions. Timer durations can be set even more conveniently with separately controllable minute minder, automatic switch-off and a 3-digit indicator.
ECO motor
The heart of every rangehood
Powerful and quiet: The DC motor saves up to 70% energy compared with conventional fans.
ECO motor
The heart of every rangehood
The ECO motor operates with DC current and saves up 70% energy compared to conventional motors. Thanks to this technology, it operates very quietly yet as powerfully as all fans used by Miele.
Specification
- Air throughput in Level 1 (m³/h) according to EN 61591
- 100
- Air throughput in Level 2 (m³/h) according to EN 61591
- 235
- Air throughput in Level 3 (m³/h) according to EN 61591
- 380
- Air throughput in Booster level (m³/h) according to EN 61591
- 460
- Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3
- 49
- Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3
- 63
- Noise level on Level 3 (dB(A) re 1 pW) according to EN 60704-3
- 73
- Sound power in Booster level (dB(A) re 1 pW) acc. to EN 60704-3
- 78
- Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13
- 49
- Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13
- 58
- Sound power in Booster level (dB(A) re 20 µPa) acc. to EN 60704-2-13
- 63
- Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13
- 34
- Safety switch-off
- FlameGuard
- Ducting system to the plinth fan
- Ducting system to the plinth fan
- Air throughput in Level 1 (m³/h) according to EN 61591
- 150
- Air throughput in Level 2 (m³/h) according to EN 61591
- 290
- Air throughput in Level 3 (m³/h) according to EN 61591
- 440
- Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3
- 58
- Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13
- 29
- Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13
- 43
- Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13
- 51
- Sound power in Booster level (dB(A) re 20 µPa) acc. to EN 60704-2-13
- 55
- Dimensions (W x D) in mm
- 222
x 89
- Dimensions in mm (width)
- 120
- Dimensions in mm (height)
- 168
- Dimensions in mm (depth)
- 520
- Casing height incl. connection box in mm
- 168
- Cutout dimensions in mm (width) with surface-mounted installation
- 100 mm
- Cutout dimensions in mm (depth) with surface-mounted installation
- 500 mm
- Inner cutout dimensions in mm (width) with flush installation
- 100
- Inner cutout dimensions in mm (depth) with flush installation
- 500
- Outer cutout dimensions in mm (width) with flush installation
- 124
- Outer cutout dimensions in mm (depth) with flush installation
- 524
- Weight in kg
- 11
- Total rated load in kW
- 0.17
- Voltage in V
- 230
- Fuse rating in A
- 10
- Number of phases
- 1
- Length of supply lead in m
- 2
- Number of dishwasher-safe stainless steel grease filters (10-ply)
- 1
- Easy-to-clean ceramic glass
- Easy-to-clean canopy interior – CleanCover
- Energy efficiency class
- A++
- Annual energy consumption in kWh/year
- 25.3
- Fluid dynamic efficiency class
- A
- Lighting efficiency class
- NA
- Grease filtering efficiency class
- B
- ECO motor
- Fan power (m³/h)
- 825
- Operation via sensor controls
- SmartSelect
- Digital power level display
- Display colour
- Yellow
- Run-on time 5 min.
- Type of air guide
- Can be retrofitted
- Recirculation conversion kit (order separately)
- DUU 1000-2
- Flat ducting components (order separately)
- DFK- xxxx
- Flush
- Frameless – surface-mounted
- Downdraft extractor
- Plinth fan with vent connection
- Extraction connection at rear and side
- Dimensions of the exhaust ducting connector in mm
- 222
- Dimensions of the exhaust ducting connector in mm
- 89
Installation Drawings
Find all installation drawings below
Plinth blower for CSDA 7001 (Installation drawing)
Plinth blower for CSDA 7001 (Installation drawing)
1) front, 2) Fan (in the plinth lying on the floor), 3) Stepped cut-out, 4) 12 mm wooden panel (not supplied as standard), 5) Air duct, 6) E-box
CSDA 7001 - flush (Installation drawing)
