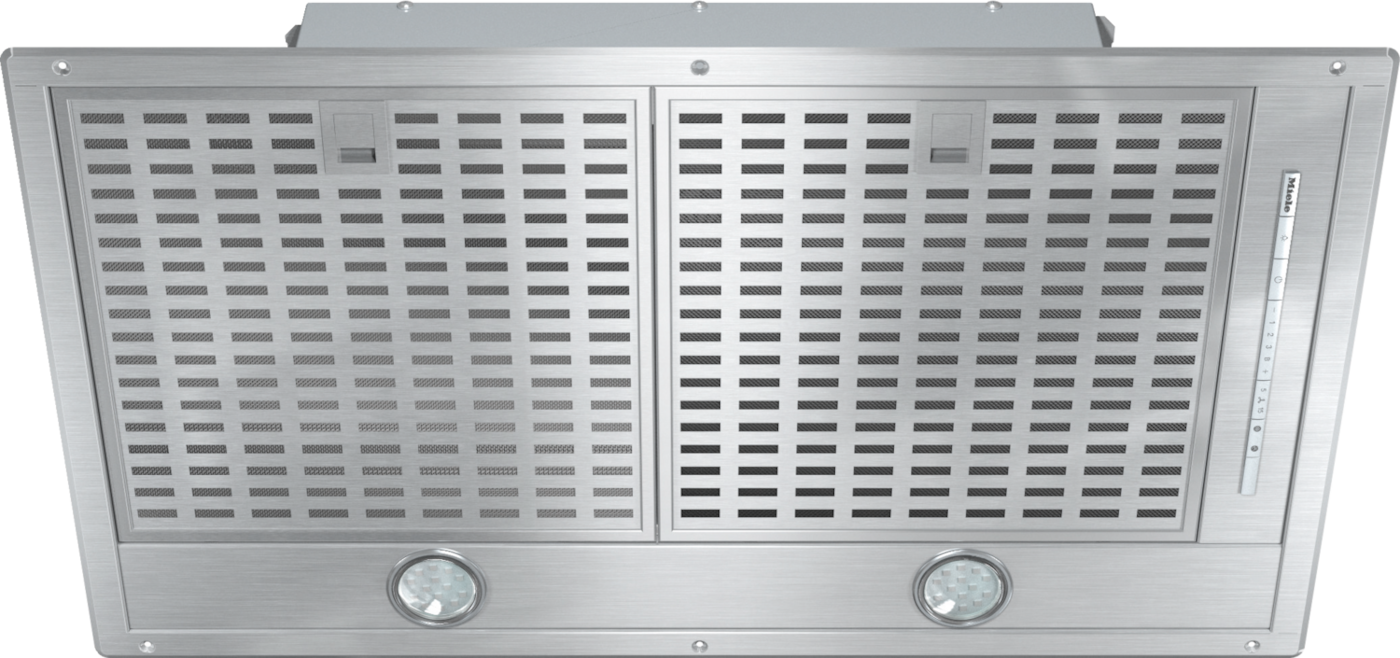

DA 2578

Extractor unit with energy-efficient LED lighting and light-touch switches for easy use.
  • Customised kitchen design – fully integrated in 702 mm width
  • Unique user convenience – Con@ctivity
  • Powerful – 785 m3/h in Booster setting
  • Efficient filtration – 10-layer stainless-steel grease filter
  • Safe and easy to clean – Miele CleanCover
See Full Description
$ 2,499.00
In stock
DA 2578
Description
10868940
  • Customised kitchen design – fully integrated in 702 mm width
  • Unique user convenience – Con@ctivity
  • Powerful – 785 m3/h in Booster setting
  • Efficient filtration – 10-layer stainless-steel grease filter
  • Safe and easy to clean – Miele CleanCover
Benefits
Always on the safe side
Safety switch-off
Always on the safe side
Sensible, even in case of operating errors: the rangehood switches off automatically after 10 hours.
Easy to use and effective against grease
Stainless steel grease filters (10-layer)
Easy to use and effective against grease
Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.
Convenience and safety in detail
Miele CleanCover
Convenience and safety in detail
Protection and easy cleaning: the smooth concealed surface prevents contact with electrical components and motor.
Countdown time conveniently in view
Filter indicator
Countdown time conveniently in view
Easy filter replacement: a red light lets you know when the grease and/or active charcoal filter is saturated.
Automatic fan run-on
Run-on function
Automatic fan run-on
Odour-free room air: after cooking, the fan can be set to switch off automatically after a 5 or 15 minute run-on period.
Automatic operation for intelligent fan control
Exclusive to Miele
Con@ctivity
Automatic operation for intelligent fan control
Innovative convenience: the rangehood reacts automatically to settings on the cooktop.
Specification
Non-return flap
Type of air guide
Can be retrofitted
Recirculation conversion kit (order separately)
DUU 151
Active charcoal filter (order separately)
DKF 15-P
Colour
Stainless steel
Miele@home
Automatic function Con@ctivity 3.0 (WiFi)
Electronic controls
Miele@mobile app
Power levels (number without Booster level)
3
Programmable Booster level switch-off
Run-on time 5/15 min.
Grease filter saturation indicator
Grease filter saturation indicator programmable
Active charcoal filter saturation indicator programmable
Easy-to-clean canopy interior – CleanCover

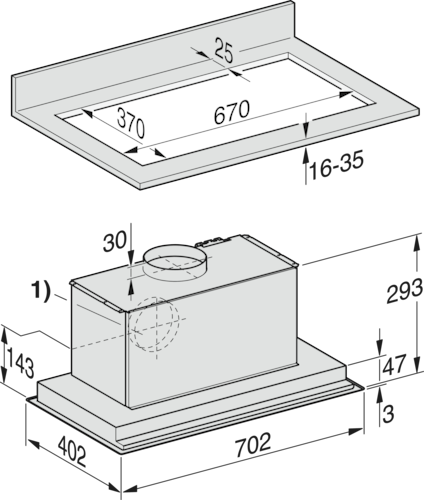

Canopy width in in. (mm)
702
Canopy height in in. (mm)
50
Depth of hood canopy in in. (mm)
402
Net weight in kg
11.6
Length of supply lead in m
1.5
Standard plug fitted
Total rated load in kW
0.301
Voltage in V
230
Fuse rating in A
10
Frequency in Hz
50
Number of phases
1
Extraction ducting connection at top
Extraction connection at top and rear
Diameter of extraction ducting connection in mm
150
Dual-action blower
AC motor
Air throughput in Level 1 (m³/h) according to EN 61591
290
Air throughput in Level 2 (m³/h) according to EN 61591
425
Air throughput in Level 3 (m³/h) according to EN 61591
575
Air throughput in Booster level (m³/h) according to EN 61591
785
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3
48
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3
55
Noise level on Level 3 (dB(A) re 1 pW) according to EN 60704-3
63
Sound power in Booster level (dB(A) re 1 pW) acc. to EN 60704-3
70
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13
35
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13
42
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13
50
Sound pressure in Booster level (dB(A) re 20 µPa) acc. to EN 60704-2-13
57
Integrated extractor
Air throughput in Level 1 (m³/h) according to EN 61591
250
Air throughput in Level 2 (m³/h) according to EN 61591
375
Air throughput in Level 3 (m³/h) according to EN 61591
500
Air throughput in Booster level (m³/h) according to EN 61591
625
Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3
59
Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3
65
Noise level on Level 3 (dB(A) re 1 pW) according to EN 60704-3
70
Sound power in Booster level (dB(A) re 1 pW) acc. to EN 60704-3
74
Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13
46
Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13
52
Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13
57
Sound pressure in Booster level (dB(A) re 20 µPa) acc. to EN 60704-2-13
61
Number of dishwasher-safe stainless steel grease filters (10-ply)
2
LED
Number x W
2 x 3 W
Light intensity in Lx
300 lx
Colour temperature in K
3000 Kelvin
Safety shut-off
Easy-to-clean canopy interior – CleanCover
