DA 2390
Extractor unit with energy-efficient LED lighting and light-touch switches for easy use.
- Customised kitchen design – fully integrated in 884 mm width
- Space-saving – suitable for narrow wall units over 30 cm deep
- Powerful – 600 m3/h in Booster setting
- Efficient filtration – 10-layer stainless-steel grease filter
- Safe and easy to clean – Miele CleanCover
Active Promotions
Description
10539550
- Customised kitchen design – fully integrated in 884 mm width
- Space-saving – suitable for narrow wall units over 30 cm deep
- Powerful – 600 m3/h in Booster setting
- Efficient filtration – 10-layer stainless-steel grease filter
- Safe and easy to clean – Miele CleanCover
Benefits
![Always on the safe side](https://media.miele.com/images/2000020/200002048/20000204809.png?imWidth=442&impolicy=z-crop&x=321&y=0&w=4486&h=3366)
Safety switch-off
Always on the safe side
Sensible, even in case of operating errors: the rangehood switches off automatically after 10 hours.
![Easy to use and effective against grease](https://media.miele.com/images/2000020/200002048/20000204833.png?imWidth=442&impolicy=z-crop&x=284&y=0&w=4552&h=3415)
Stainless steel grease filters (10-layer)
Easy to use and effective against grease
Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.
![Convenience and safety in detail](https://media.miele.com/images/2000020/200002047/20000204786.png?imWidth=442&impolicy=z-crop&x=464&y=0&w=4554&h=3415)
Miele CleanCover
Convenience and safety in detail
Protection and easy cleaning: the smooth concealed surface prevents contact with electrical components and motor.
Specification
- Non-return flap
- Type of air guide
- Can be retrofitted
- Recirculation conversion kit (order separately)
- DUU 151
- Active charcoal filter (order separately)
- DKF 19-P
- Colour
- Stainless steel
- Electronic controls
- Power levels (number without Booster level)
- 3

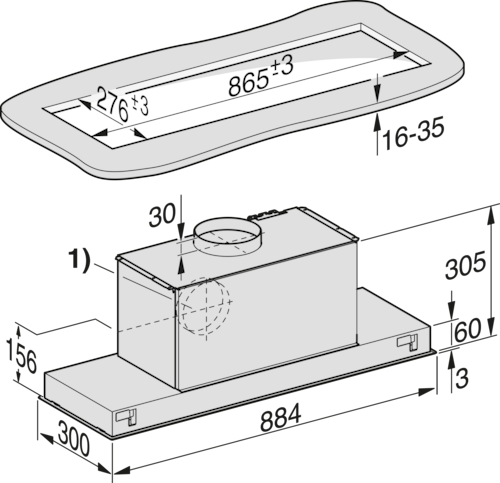

- Canopy width in in. (mm)
- 884
- Canopy height in in. (mm)
- 63
- Depth of hood canopy in in. (mm)
- 297
- Net weight in kg
- 13
- Length of supply lead in m
- 1.5
- Standard plug fitted
- Total rated load in kW
- 0.232
- Voltage in V
- 230
- Fuse rating in A
- 10
- Frequency in Hz
- 50
- Number of phases
- 1
- Extraction ducting connection at top
- Extraction connection at top and rear
- Diameter of extraction ducting connection in mm
- 150
- Dual-action blower
- AC motor
- Air throughput in Level 1 (m³/h) according to EN 61591
- 250
- Air throughput in Level 2 (m³/h) according to EN 61591
- 300
- Air throughput in Level 3 (m³/h) according to EN 61591
- 360
- Air throughput in Booster level (m³/h) according to EN 61591
- 600
- Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3
- 47
- Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3
- 48
- Noise level on Level 3 (dB(A) re 1 pW) according to EN 60704-3
- 52
- Sound power in Booster level (dB(A) re 1 pW) acc. to EN 60704-3
- 64
- Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13
- 31
- Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13
- 34
- Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13
- 38
- Sound pressure in Booster level (dB(A) re 20 µPa) acc. to EN 60704-2-13
- 50
- Integrated extractor
- Air throughput in Level 1 (m³/h) according to EN 61591
- 190
- Air throughput in Level 2 (m³/h) according to EN 61591
- 250
- Air throughput in Level 3 (m³/h) according to EN 61591
- 320
- Air throughput in Booster level (m³/h) according to EN 61591
- 500
- Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3
- 54
- Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3
- 60
- Noise level on Level 3 (dB(A) re 1 pW) according to EN 60704-3
- 64
- Sound power in Booster level (dB(A) re 1 pW) acc. to EN 60704-3
- 72
- Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13
- 39
- Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13
- 45
- Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13
- 49
- Sound pressure in Booster level (dB(A) re 20 µPa) acc. to EN 60704-2-13
- 57
- Number of dishwasher-safe stainless steel grease filters (10-ply)
- 2
- LED
- Number x W
- 4 x 3 W
- Light intensity in Lx
- 500 lx
- Colour temperature in K
- 3000 Kelvin
- Safety shut-off
- Easy-to-clean canopy interior – CleanCover
