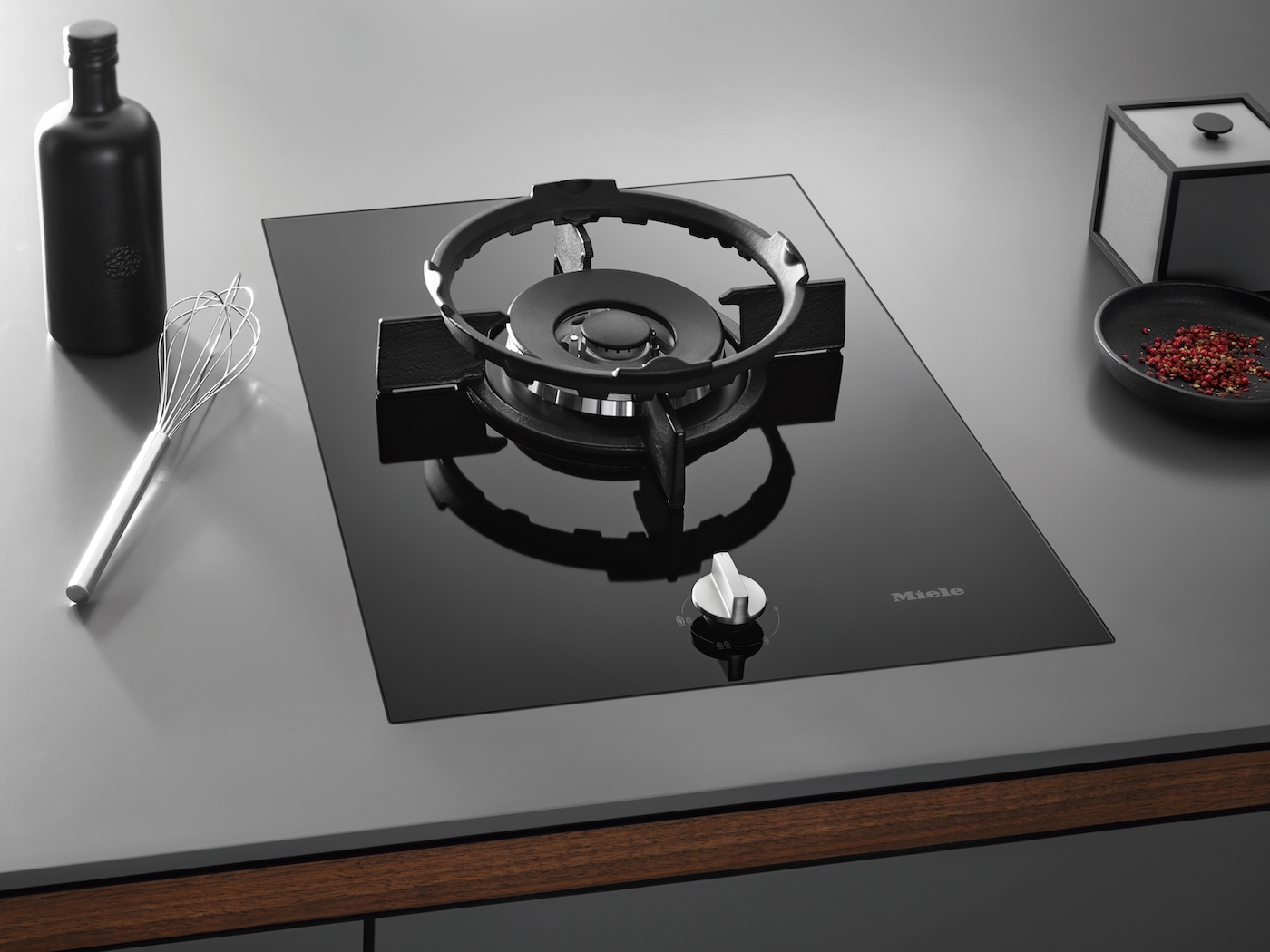

CS 7101-1 FL

SmartLine element SmartLine element with a dual wok burner
  • Simple controls – single-handed operation via rotary dial control
  • Elegant design – for flush or raised installation
  • Seamlessly integrates with any SmartLine element
  • Broad performance spectrum – dual wok with up to 4.5 kW kW of power
  • Easy cleaning – dishwasher-safe ComfortClean pot rests
See Full Description
$ 3,499.00
In stock
CS 7101-1 FL
Description
11402680
  • Simple controls – single-handed operation via rotary dial control
  • Elegant design – for flush or raised installation
  • Seamlessly integrates with any SmartLine element
  • Broad performance spectrum – dual wok with up to 4.5 kW kW of power
  • Easy cleaning – dishwasher-safe ComfortClean pot rests
Benefits
Design in detail

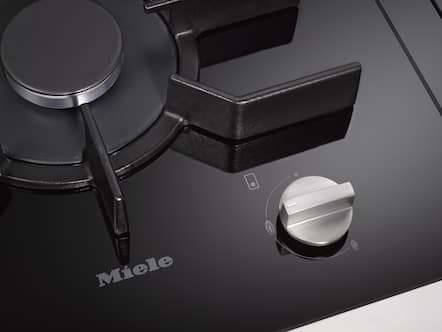

Metal knobs
Design in detail
Perfect convenience: The gas elements can be intuitively operated via high-quality metal knobs.
Flame failure monitor for maximum safety
GasStop
Flame failure monitor for maximum safety
Reassuring: If the flame is extinguished, for example by a draught, the continued supply of gas is prevented.
Perfect wok cooking on gas
Wok burner
Perfect wok cooking on gas
Professional: Powerful wok burner for uniform and/or separate power regulation of both flame rings.
Easy ignition of the flame
Electronic ignition with single-handed operation
Easy ignition of the flame
No need for matches or lighters: automatic ignition of burners thanks to intelligent technology.
Efficiently protects and makes cleaning easier
ComfortClean pot rests
Efficiently protects and makes cleaning easier
Fast cleaning: Remove the pot rests and wash in the dishwasher. Keeps gas cooktops looking good for longer.
Specification
Dimensions in mm (width)
378
Dimensions in mm (height)
86
Casing height incl. connection box in mm
92
Dimensions in mm (depth)
520
Cutout dimensions in mm (width) with surface-mounted installation
358
Cutout dimensions in mm (depth) with surface-mounted installation
500
Internal cutout dimensions in mm (width) with flush installation
358
Internal cutout dimensions in mm (depth) with flush installation
500
External cutout dimensions in mm (width) with flush installation
382
External cutout dimensions in mm (depth) with flush installation
524
Weight in kg
7
Total rated load in kW
4.5
Dimensions in mm (width)
Hinten links
Voltage in V
230
Frequency in Hz
50-60
Length of supply lead in m
2
Position
Centred
Type
Dual wok burner
Size in mm
Ø 300
Max. rating in W
4400
Operation via sensor controls
Knob
Operation via dials
Electronic ignition with single-hand operation
CSFG 7000 FlameGuard
Mains cable
Wok ring
Elegant glass ceramic surface
Ceramic surface colour
Black
Flush
Surface-mounted installation
Cast-iron pot rests (matt black enamelled)
SmartLine
Heating type
Gas
Easy-to-clean ceramic glass
Dishwasher-proof pot rests
GasStop
Number of cooking zones
1
