DA 7198 W Triple Black Wall mounted cooker hood
Wall mounted rangehood with energy-efficient LED lighting and light-touch switches for easy use.
- Unique design with 3 curved glass surfaces, 880 mm wide
- Unique user convenience – Con@ctivity
- Energy-efficient and uniform illumination – 2 LED spotlights
- Powerful – 700 m3/h in Booster setting
- Energy-efficient and quiet – powerful ECO motor
Active Promotions
Description
10807820
- Unique design with 3 curved glass surfaces, 880 mm wide
- Unique user convenience – Con@ctivity
- Energy-efficient and uniform illumination – 2 LED spotlights
- Powerful – 700 m3/h in Booster setting
- Energy-efficient and quiet – powerful ECO motor
Benefits
Stainless steel grease filters (10-layer)
Easy to use and effective against grease
Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.
Stainless steel grease filters (10-layer)
Easy to use and effective against grease
Miele rangehoods are equipped with 10-ply stainless-steel grease filter(s) for excellent grease removal. Built-in fall protection allows you to handle them safely and protects your cooktop from damage. The top layer and filter frame are made of high-quality stainless steel so that no visible discoloration occurs from being cleaned in the dishwasher and they retain their stunning appearance.
Miele CleanCover
Convenience and safety in detail
Protection and easy cleaning: the sealed, smooth surface prevents contact with cables and the motor.
Miele CleanCover
Convenience and safety in detail
Located behind the grease filters is the Miele CleanCover: Instead of sharp metal edges and electrical components you will find only a sealed, smooth surface. It is particularly easy to clean and protects you from coming in contact with electrical components and the motor. Miele attention to detail - for your convenience and safety.
Exclusive to Miele
Con@ctivity
Automatic operation for intelligent fan control
Innovative convenience: the rangehood reacts automatically to settings on the cooktop.
Exclusive to Miele
Con@ctivity
Automatic operation for intelligent fan control
The Miele automatic function Con@ctivity * enables the cooker hood to communicate with the hob: Hob settings are transmitted to the controls of the cooker hood. Your Miele cooker hood then uses this data to automatically select the correct fan setting to ensure the optimum room climate at all times.
ECO motor
The heart of every rangehood
Powerful and economical: the DC motor saves up to 50 % electricity compared with conventional motors.
ECO motor
The heart of every rangehood
The heart and soul of every rangehood is the motor. Some Miele rangehoods feature ECO motors which work up to 50 % more economically than conventional motors. They are also very quiet but still as powerful as the motors in other Miele rangehoods.
Safety switch-off
Always on the safe side
Sensible, even in case of operating errors: the rangehood switches off automatically after 10 hours.
Safety switch-off
Always on the safe side
The rangehood will switch off automatically after 10 hours. This ensures maximum safety even in the event of operating errors.
Stainless steel grease filters (10-layer)
Easy to use and effective against grease
Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.
Stainless steel grease filters (10-layer)
Easy to use and effective against grease
Miele rangehoods are equipped with 10-ply stainless-steel grease filter(s) for excellent grease removal. Built-in fall protection allows you to handle them safely and protects your cooktop from damage. The top layer and filter frame are made of high-quality stainless steel so that no visible discoloration occurs from being cleaned in the dishwasher and they retain their stunning appearance.
Miele CleanCover
Convenience and safety in detail
Protection and easy cleaning: the sealed, smooth surface prevents contact with cables and the motor.
Miele CleanCover
Convenience and safety in detail
Located behind the grease filters is the Miele CleanCover: Instead of sharp metal edges and electrical components you will find only a sealed, smooth surface. It is particularly easy to clean and protects you from coming in contact with electrical components and the motor. Miele attention to detail - for your convenience and safety.
Exclusive to Miele
Con@ctivity
Automatic operation for intelligent fan control
Innovative convenience: the rangehood reacts automatically to settings on the cooktop.
Exclusive to Miele
Con@ctivity
Automatic operation for intelligent fan control
The Miele automatic function Con@ctivity * enables the cooker hood to communicate with the hob: Hob settings are transmitted to the controls of the cooker hood. Your Miele cooker hood then uses this data to automatically select the correct fan setting to ensure the optimum room climate at all times.
Filter indicator
Countdown time conveniently in view
Easy filter replacement: a red light lets you know when the grease and/or active charcoal filter is saturated.
Filter indicator
Countdown time conveniently in view
If the grease or active charcoal filter of your Miele cooker hood is saturated, it is indicated by a lit-up red LED. Your filter should then be cleaned or replaced as soon as possible. You can individually adjust the factory-set service life of the filters: The grease filter saturation indicator can be programmed for 20, 30, 40 or 50 hours, the indicator for active charcoal filter replacement for 120, 180 or 240 hours.
Run-on function
Automatic fan run-on
Odour-free room air: after cooking, the fan can be set to switch off automatically after a 5 or 15 minute run-on period.
Run-on function
Automatic fan run-on
The automatic fan run-on ensures the full extraction of steam and odours still in the air after cooking. The rangehood can be set to switch off automatically after 5 or 15 minutes.
ECO motor
The heart of every rangehood
Powerful and economical: the DC motor saves up to 50 % electricity compared with conventional motors.
ECO motor
The heart of every rangehood
The heart and soul of every rangehood is the motor. Some Miele rangehoods feature ECO motors which work up to 50 % more economically than conventional motors. They are also very quiet but still as powerful as the motors in other Miele rangehoods.

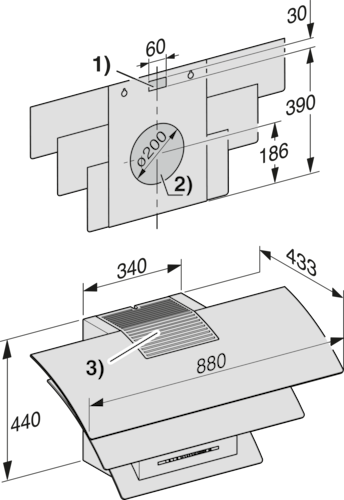

Specification
- Overall height for vented and external in in. (mm)
- 440
- Overall height for extraction mode and external mode rangehoods in mm
- 440
- Overall height for recirculation in in. (mm)
- 440
- Overall height for recirculation mode rangehoods in mm
- 440
- Canopy width in in. (mm)
- 880
- Canopy height in in. (mm)
- 440
- Depth of hood canopy in in. (mm)
- 433
- Net weight in kg
- 21
- Length of supply lead in m
- 1.5
- Standard plug fitted
- Hard-wired connection
- Total rated load in kW
- 0.236
- Voltage in V
- 230
- Fuse rating in A
- 10
- Frequency in Hz
- 50
- Number of phases
- 1
- Non-return flap
- Colour
- Obsidian black
- Type of air guide
- Can be retrofitted
- Active charcoal filter (order separately)
- DKF 11-P
- Miele@home
- Automatic function Con@ctivity 3.0 (WiFi)
- Electronic controls
- Miele@mobile app
- Power levels (number without Booster level)
- 3
- Booster level
- 1
- Programmable Booster level switch-off
- Grease filter saturation indicator
- Grease filter saturation indicator programmable
- Active charcoal filter saturation indicator programmable
- Extraction ducting connection at top
- Extraction connection at top and rear
- Diameter of extraction ducting connection in mm
- 150
- Dual-action blower
- DC motor
- Air throughput in Level 1 (m³/h) according to EN 61591
- 270
- Air throughput in Level 2 (m³/h) according to EN 61591
- 410
- Air throughput in Level 3 (m³/h) according to EN 61591
- 540
- Air throughput in Booster level (m³/h) according to EN 61591
- 700
- Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3
- 51
- Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3
- 61
- Noise level on Level 3 (dB(A) re 1 pW) according to EN 60704-3
- 69
- Sound power in Booster level (dB(A) re 1 pW) acc. to EN 60704-3
- 74
- Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13
- 36
- Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13
- 47
- Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13
- 54
- Sound pressure in Booster level (dB(A) re 20 µPa) acc. to EN 60704-2-13
- 60
- Wall-mounted rangehood
- Air throughput in Level 1 (m³/h) according to EN 61591
- 175
- Air throughput in Level 2 (m³/h) according to EN 61591
- 285
- Air throughput in Level 3 (m³/h) according to EN 61591
- 330
- Air throughput in Booster level (m³/h) according to EN 61591
- 380
- Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3
- 57
- Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3
- 68
- Noise level on Level 3 (dB(A) re 1 pW) according to EN 60704-3
- 71
- Sound power in Booster level (dB(A) re 1 pW) acc. to EN 60704-3
- 74
- Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13
- 42
- Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13
- 53
- Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13
- 56
- Sound pressure in Booster level (dB(A) re 20 µPa) acc. to EN 60704-2-13
- 60
- Number of dishwasher-safe stainless steel grease filters (10-ply)
- 1
- LED
- Number x W
- 2 x 3 W
- Light intensity in Lx
- 600 lx
- Colour temperature in K
- 3500 Kelvin
- Dimmer function
- Safety shut-off
- Single-ply safety glass (ESG)
- Easy-to-clean canopy interior – CleanCover
- null, null
