DA 2518 Extractor unit
Extractor unit with energy-efficient LED lighting and light-touch switches for easy use.
- Customised kitchen design – fully integrated in 1102 mm width
- Unique user convenience – Con@ctivity
- Powerful – 785 m3/h in Booster setting
- Efficient filtration – 10-layer stainless-steel grease filter
- Safe and easy to clean – Miele CleanCover
Active Promotions
Description
10868930
- Customised kitchen design – fully integrated in 1102 mm width
- Unique user convenience – Con@ctivity
- Powerful – 785 m3/h in Booster setting
- Efficient filtration – 10-layer stainless-steel grease filter
- Safe and easy to clean – Miele CleanCover
Benefits
Safety switch-off
Always on the safe side
Sensible, even in case of operating errors: the rangehood switches off automatically after 10 hours.
Stainless steel grease filters (10-layer)
Easy to use and effective against grease
Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher.
Miele CleanCover
Convenience and safety in detail
Protection and easy cleaning: the sealed, smooth surface prevents contact with cables and the motor.
Exclusive to Miele
Con@ctivity
Automatic operation for intelligent fan control
Innovative convenience: the rangehood reacts automatically to settings on the cooktop.
Filter indicator
Countdown time conveniently in view
Easy filter replacement: a red light lets you know when the grease and/or active charcoal filter is saturated.
Run-on function
Automatic fan run-on
Odour-free room air: after cooking, the fan can be set to switch off automatically after a 5 or 15 minute run-on period.
Specification
- Non-return flap
- Type of air guide
- Can be retrofitted
- Recirculation conversion kit (order separately)
- DUU 151
- Active charcoal filter (order separately)
- DKF 15-P
- Colour
- Stainless steel
- Miele@home
- Automatic function Con@ctivity 3.0 (WiFi)
- Electronic controls
- Miele@mobile app
- Power levels (number without Booster level)
- 3
- Booster level
- 1
- Programmable Booster level switch-off
- Grease filter saturation indicator
- Grease filter saturation indicator programmable
- Active charcoal filter saturation indicator programmable

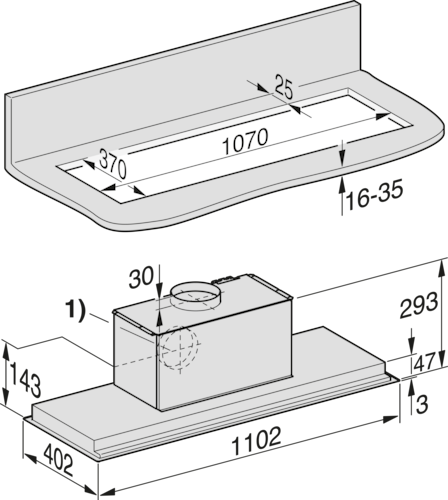

- Canopy width in in. (mm)
- 1102
- Canopy height in in. (mm)
- 50
- Depth of hood canopy in in. (mm)
- 402
- Net weight in kg
- 14.3
- Length of supply lead in m
- 1.5
- Standard plug fitted
- Total rated load in kW
- 0.307
- Voltage in V
- 230
- Fuse rating in A
- 10
- Frequency in Hz
- 50
- Number of phases
- 1
- Extraction ducting connection at top
- Extraction connection at top and rear
- Diameter of extraction ducting connection in mm
- 150
- Dual-action blower
- AC motor
- Air throughput in Level 1 (m³/h) according to EN 61591
- 290
- Air throughput in Level 2 (m³/h) according to EN 61591
- 425
- Air throughput in Level 3 (m³/h) according to EN 61591
- 575
- Air throughput in Booster level (m³/h) according to EN 61591
- 785
- Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3
- 48
- Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3
- 55
- Noise level on Level 3 (dB(A) re 1 pW) according to EN 60704-3
- 63
- Sound power in Booster level (dB(A) re 1 pW) acc. to EN 60704-3
- 70
- Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13
- 35
- Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13
- 42
- Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13
- 50
- Sound pressure in Booster level (dB(A) re 20 µPa) acc. to EN 60704-2-13
- 57
- Integrated extractor
- Air throughput in Level 1 (m³/h) according to EN 61591
- 250
- Air throughput in Level 2 (m³/h) according to EN 61591
- 375
- Air throughput in Level 3 (m³/h) according to EN 61591
- 500
- Air throughput in Booster level (m³/h) according to EN 61591
- 625
- Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3
- 59
- Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3
- 65
- Noise level on Level 3 (dB(A) re 1 pW) according to EN 60704-3
- 70
- Sound power in Booster level (dB(A) re 1 pW) acc. to EN 60704-3
- 74
- Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13
- 46
- Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13
- 52
- Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13
- 57
- Sound pressure in Booster level (dB(A) re 20 µPa) acc. to EN 60704-2-13
- 61
- Number of dishwasher-safe stainless steel grease filters (10-ply)
- 3
- LED
- Number x W
- 4 x 3 W
- Light intensity in Lx
- 520 lx
- Colour temperature in K
- 3000 Kelvin
- Safety shut-off
- Easy-to-clean canopy interior – CleanCover
